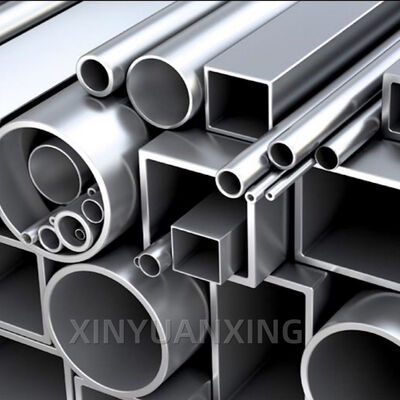

Stainless Steel TP304L Pipe Seamless Welded DN80 Sch40 Pickling SUS316L 316ti Round Rectangle Square No 4 As Requirement
Product Details
| Model NO.: | Stainless Steel Pipe | Technique: | Cold Rolled |
|---|---|---|---|
| Material: | Stainless Steel | Surface Treatment: | Polished |
| Usage: | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose | Section Shape: | Round |
| Applications: | Architectural Decoration | Product Name: | Stainless Steel Pipe |
| Surface Finish: | 2b,Ba,No.1,No.4,4K,8K,Mirror | Tolerance: | 1% |
| Ni: | 8-12% | Materials: | 201,304,321,316ti,316L,314h,310S,2507 |
| Transport Package: | Water Proof Paper+Metal Pallet+Angle Bar Protectio | Specification: | As Requirement |
| Trademark: | TISCO, POSCO, JISCO, LISCO Etc. | Origin: | Wuxi China |
| HS Code: | 721922 | Supply Ability: | 50000ton/Month |
| Highlight |
Stainless Steel TP304L seamless pipe,DN80 Sch40 stainless steel pipe,SUS316L rectangular steel pipe |
||
Product Description
Stainless Steel TP304L Pipe
Seamless Welded DN80 Sch40 Pickling SUS316L 316ti Round Rectangle Square No 4 As Requirement
Product Overview
Stainless steel tube is a high-performance metal piping product crafted from corrosion-resistant stainless steel alloys (Cr ≥10.5%, combined with Ni, Mo, Ti, etc.). Available in seamless (hot-extruded/seamless drawn) and welded (ERW/TIG) configurations, it complies with international standards (ASTM, JIS, GB, EN) and delivers exceptional rust resistance, durability, and formability. From food processing pipelines to chemical plant systems, architectural handrails to automotive exhausts, stainless steel tube is the go-to choice for industries demanding long-term reliability in harsh or precision-required environments.
Core Types & Key Advantages
Material Foundation: The chromium content forms a dense, self-healing oxide film on the surface, blocking corrosion from moisture, chemicals, and high temperatures.
Two Main Types:
- Seamless Stainless Steel Tube: Manufactured via hot extrusion or cold drawing (no weld seams), offering superior structural integrity, high pressure resistance, and tight dimensional tolerance. Ideal for high-pressure, high-temperature, or critical precision applications (thickness: 0.5mm-20mm).
- Welded Stainless Steel Tube: Formed by welding stainless steel strips (ERW/TIG welding), cost-effective, high production efficiency, suitable for general industrial and commercial use (thickness: 0.3mm-12mm).
Unmatched Advantages:
- Extreme corrosion resistance (adapts to fresh water, saltwater, acids, alkalis, and harsh industrial media).
- High tensile strength & ductility (easy to cut, bend, weld, and fabricate into complex shapes).
- Hygienic & easy to clean (meets FDA/3A standards for food/medical use, no toxic leaching).
- Long service life (low maintenance, no need for anti-corrosion coating).
- Aesthetic versatility (matte, mirror, brushed surfaces for decorative or functional use).
Common Surface Finishes: 2B (matte, industrial standard), BA (mirror polish), No.4 (brushed), electrolytic polish, pickling passivation-customized for your use case.
Hot-Selling Stainless Steel Grades
| Grade | Alloy Key Features | Max Service Temp | Core Advantages | Typical Applications |
|---|---|---|---|---|
| 304/304L | Cr18-Ni8, low carbon (304L) | ≤870ºC | Cost-effective, general corrosion resistance, food-safe | Food processing pipelines, architectural handrails, water treatment systems, kitchen equipment |
| 316/316L | Cr18-Ni12-Mo2, low carbon (316L) | ≤870ºC | Superior corrosion resistance (saltwater/chemicals), anti-pitting | Marine pipelines, chemical tanks, medical devices, offshore platforms, pharmaceutical equipment |
| 321 | Cr18-Ni9-Ti | ≤900ºC | Heat-resistant, avoids intergranular corrosion | High-temperature pipelines, furnace tubes, aerospace components, boiler systems |
| 310S | Cr25-Ni20 | ≤1150ºC | Ultra-high temperature resistance, oxidation-resistant | Industrial furnaces, heat exchangers, high-temperature exhaust systems |
| 2205 (Duplex) | Cr22-Ni5-Mo3 | ≤315ºC | High strength + corrosion resistance (2x stronger than 304/316L) | Oil & gas pipelines, chemical reactors, seawater desalination plants |
| 430 | Cr17 (ferritic) | ≤815ºC | Economical, good formability, magnetic | Appliance tubes, decorative structures, non-critical industrial pipelines |
Key Technical Parameters
| Parameter | Seamless Stainless Steel Tube | Welded Stainless Steel Tube |
|---|---|---|
| Outer Diameter (OD) | 6mm - 325mm (custom up to 530mm) | 10mm - 630mm (custom up to 1200mm) |
| Wall Thickness (WT) | 0.5mm - 20mm (Schedule 5-160) | 0.3mm - 12mm (Schedule 5-80) |
| Tensile Strength | 480MPa - 750MPa (varies by grade) | 450MPa - 700MPa (varies by grade) |
| Yield Strength | ≥205MPa (≥450MPa for 2205) | ≥195MPa (≥440MPa for 2205) |
| Elongation (δ5) | ≥40% (≥25% for duplex grades) | ≥35% (≥25% for duplex grades) |
| Standards Compliance | ASTM A213, A312, A480, JIS G3459, GB/T 14976 | ASTM A312, A409, JIS G3448, GB/T 12771 |
| Certification | ISO 9001, FDA, CE, 3A (food/medical), SGS/BV Inspection | ISO 9001, FDA, CE, SGS/BV Inspection |
Core Application Industries
- Food & Beverage: Processing pipelines, dairy machinery, brewing equipment, and food storage tanks (304/316L, FDA-compliant).
- Chemical & Petrochemical: Corrosive medium pipelines, chemical storage tanks, reactor tubes, and acid/alkali transfer systems (316L/2205/310S).
- Architecture & Construction: Handrails, balustrades, curtain wall supports, decorative tubes, and HVAC systems (304/430, 2B/BA/Brushed finishes).
- Marine & Offshore: Ship hull piping, offshore platform pipelines, seawater cooling systems, and coastal structures (316L/2205).
- Medical & Pharmaceutical: Surgical instrument components, cleanroom pipelines, and drug processing equipment (316L, electrolytic polish).
- Automotive & Aerospace: Exhaust systems, fuel lines, and aerospace hydraulic tubes (304/321/310S).
- Water Treatment: Drinking water pipelines, wastewater treatment systems, and desalination plants (304/316L).
Procurement Guide
Select the Grade:
- General use + food/Drinking water: 304/304L (cost-effective, corrosion-resistant).
- Saltwater/chemicals/harsh environments: 316/316L (Mo-enhanced protection).
- High temperature (≥900ºC): 321/310S (heat-stable alloys).
- High strength + corrosion resistance: 2205 duplex (heavy-duty industrial use).
- Budget-friendly non-critical use: 430 (ferritic stainless steel).
Choose Seamless vs. Welded:
- High pressure/high temperature/critical applications: Seamless (no weld weak points).
- General industrial/commercial use: Welded (cost-effective, large OD available).
Confirm Dimensions: Specify OD, WT, length (fixed 6m/12m or custom cut-to-length), and schedule (e.g., Schedule 40 for standard pressure).
Surface Finish: 2B (default for industrial pipelines), BA (mirror for decoration), electrolytic polish (medical/food), pickling passivation (corrosion protection).
Quality Requirements: Request mill test report (MTR) for chemical composition/mechanical properties; non-destructive testing (NDT: ultrasonic, eddy current) for high-pressure projects.
Frequently Asked Questions
Q: What's the difference between 304 and 316L stainless steel tubes?
A: 316L contains molybdenum (Mo) for better resistance to saltwater, acids, and pitting corrosion; 304 is more economical for general use (e.g., water pipelines, architecture).
Q: Seamless vs. welded stainless steel tube-Which is better?
A: Seamless = higher pressure resistance + precision (critical applications); welded = lower cost + larger OD options (general use).
Q: Are stainless steel tubes magnetic?
A: 304/316L (austenitic) = non-magnetic; 430 (ferritic)/2205 (duplex) = slightly magnetic (no impact on performance).
Q: Can I use stainless steel tubes for drinking water?
A: Yes-304/316L tubes comply with FDA/NSF standards, non-toxic and corrosion-resistant, safe for drinking water.
Q: Do you offer custom sizes and finishes?
A: Absolutely-we customize OD (6mm-1200mm), WT (0.3mm-20mm), length, and finishes (2B/BA/electrolytic polish) to your project needs.
Product Gallery
Surface Finishes
Packaging & Shipping
Quality Assurance
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based", since the establishment of the company and always to do our best to satisfy potential needs of our customers. Our company is sincerely to willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with irresistible force.
Why Choose Our Stainless Steel Tube?
- Quality Assurance: 100% compliant with ASTM/JIS/GB/EN standards, full traceability via MTR, and third-party inspection (SGS/BV) available for critical projects.
- Full Product Range: Stocked with hot grades (304, 316L, 321, 310S, 2205, 430) and both seamless/welded tubes for quick delivery.
- Custom Solutions: Cut-to-length, threading, flanging, surface treatment, and small-batch orders are all supported.
- Technical Expertise: Our team provides professional grade selection, pressure calculation, and application guidance to avoid mismatches.
- Global Supply Chain: Fast shipping to North America, Europe, Asia, and beyond-reliable logistics to meet your project timeline.
Product Highlights
