Square Shape Stainless Steel Pipes Tube 50x50mm A312 TP304 DIN 1.4401 1.4406 Brushed Finish With ISO
Product Details
| Surface: | Brushed Finish | Product Name: | Stainless Steel Pipes |
|---|---|---|---|
| Tolerance: | ±1% | Delivery Time: | 7-15 Days |
| Invoicing: | By Actual Weight | MOQ: | 1 TON |
| Highlight |
DIN 1.4401 Stainless Steel Pipes,Brushed Finish Stainless Steel Pipes,Square Shape Stainless Steel Pipes |
||
Product Description
Square Shape Stainless Steel Pipes Tube 50x50mm A312 TP304 DIN 1.4401 1.4406 Brushed Finish With ISO
Stainless steel square pipe classification: square pipes are divided into two categories: seamless steel pipes and welded steel pipes (seam pipes). According to the cross-sectional shape, it can be divided into square and rectangular pipes. Round steel pipes are widely used, but there are also some special-shaped steel pipes such as semicircle, hexagon, equilateral triangle and octagon.
For stainless steel square pipes subjected to fluid pressure, hydraulic tests must be carried out to verify their pressure resistance and quality, and no leakage, wetting or expansion under the specified pressure is qualified. Some steel pipes must be coiled according to the standard or the demander's requirements. Edge test, flaring test, flattening test, etc.
Production Description
| Product Name | Stainless Steel Pipe, Stainless Steel Tube |
| Specification | OD: Seamless ( 6.0-100mm), Welded (50-250mm). Customized sizes are accepted |
| Thickness | 0.6-200mm or as required |
| Length | 1000-12000mm or as required |
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, et |
| Material |
304, 304L, 310S, 310, 309, 309S, 314, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 1.4401,1.4406,etc. |
| Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, hairline, sandblast, brush, etc |
| Brand Name | TISCO, Baosteel, LISCO, JISCO |
| Place of Origin | China (Mainland) |
| Port of Loading | TIANJIN, GUANGZHOU, NIINGBO, SHANGHAI or as required |
| Terms of Delivery | FOB, CFR, CIF, CNF, Ex-Work |
| Terms of Payment | TT/ LC, accept other payment methods |
| Delivery time | Within 3-15 days or depends on the quantity |
| Package | Standard export seaworthy package, or as required. |
| MTC | Mill Test Certificate is supplied with shipment, third part inspection is acceptable |
| Certificate | ISO 9001 BV SGS,etc |
| Stock | Ready in stocks |
Surface Treatment
| Surface finish |
Characteristics & Application
|
|
NO.1
|
Hot-rolled surface, annealed and pickled, can be used as cold-rolling material, industrial tanks and chemical devices. |
| 2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surface treatment to improve its chemical properties, N0.2B. could nearly satisfy comprehensive uses. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3. are used as bathtub building inner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4. finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold-rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for electrical appliances, kitchen apparatus, ornament materials etc. |
Chemical Compisition
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
|
201
|
≤0.15
|
≤0.75
|
5.5-7.5
|
≤0.06
|
≤0.03
|
3.5-5.5
|
16.0-18.0
|
-
|
|
202
|
≤0.15
|
≤1.0
|
7.5-10.0
|
≤0.06
|
≤0.03
|
4.-6.0
|
17.0-19.0
|
-
|
|
301
|
≤0.15
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
6.0-8.0
|
16.0-18.0
|
-
|
|
302
|
≤0.15
|
≤1.0
|
≤2.0
|
≤0.035
|
≤0.03
|
8.0-10.0
|
17.0-19.0
|
-
|
|
304
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
8.0-10.5
|
18.0-20.0
|
-
|
|
304L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.035
|
≤0.03
|
9.0-13.0
|
18.0-20.0
|
-
|
|
309S
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
12.0-15.0
|
22.0-24.0
|
-
|
|
310S
|
≤0.08
|
≤1.5
|
≤2.0
|
≤0.035
|
≤0.03
|
19.0-22.0
|
24.0-26.0
|
-
|
|
316
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
10.0-14.0
|
16.0-18.0
|
2.0-3.0
|
|
316L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.045
|
≤0.03
|
12.0-15.0
|
16.0-18.0
|
2.0-3.0
|
|
321
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.035
|
≤0.03
|
9.0-13.0
|
17.0-19.0
|
-
|
|
630
|
≤0.07
|
≤1.0
|
≤1.0
|
≤0.035
|
≤0.03
|
3.0-5.0
|
15.5-17.5
|
-
|
|
631
|
≤0.09
|
≤1.0
|
≤1.0
|
≤0.030
|
≤0.035
|
6.50-7.75
|
16.0-18.0
|
-
|
|
904L
|
≤2.0
|
≤0.045
|
≤1.0
|
≤0.035
|
-
|
23.0-28.0
|
19.0-23.0
|
4.0-5.0
|
|
2205
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.030
|
≤0.02
|
4.5-6.5
|
22.0-23.0
|
3.0-3.5
|
|
2507
|
≤0.03
|
≤0.80
|
≤1.2
|
≤0.035
|
≤0.02
|
6.0-8.0
|
24.0-26.0
|
3.0-5.0
|
|
2520
|
≤0.08
|
≤1.5
|
≤2.0
|
≤0.045
|
≤0.03
|
0.19-0.22
|
0.24-0.26
|
-
|
|
410
|
≤0.15
|
≤1.0
|
≤1.0
|
≤0.035
|
≤0.03
|
-
|
11.5-13.5
|
-
|
|
430
|
≤0.12
|
≤0.75
|
≤1.0
|
≤0.040
|
≤0.03
|
≤0.60
|
16.0-18.0
|
-
|

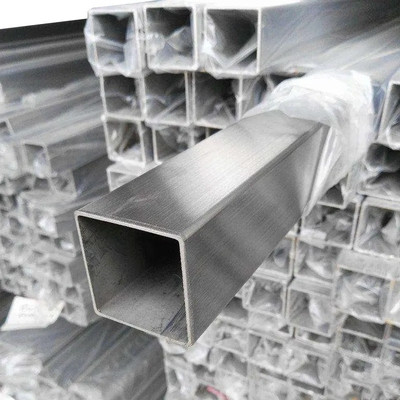

Detailed Photo
Application
Package & Delivery
Certificate
FAQ:
Q: What is the brand name of the stainless steel plate?
A: The brand name of the stainless steel plate is TISCO.
Q: What are the model numbers available?
A: The model numbers available are 201 304 304L 316 316L 321 410 420 430.
Q: Where is the stainless steel plate from?
A: The stainless steel plate is from China.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 Ton.
Q: What is the payment term?
A: The payment term is TT, L/C.
