T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans

  • T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans
  • T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans
Place of Origin Jiangsu, China
Brand Name TISCO
Certification SGS ISO ROHS
Model Number T4 Dr9 Dr8 SPCC
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Standard Seaworthy Package
Delivery Time 5 - 10Days after confirming order
Payment Terms L/C, T/T
Supply Ability 800TONS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tin Coating 2.8/2.8 Hardness T1-T5
Product Name Tin Plated Steel Model Number T1-DR9
Surface Bright Finish Material SPCC MR SPHC
Highlight

5.6/2.8 Tin Plated Steel

,

Cans Tin Plated Steel

,

SPCC Tin Plated Steel
Leave a Message
Product Description

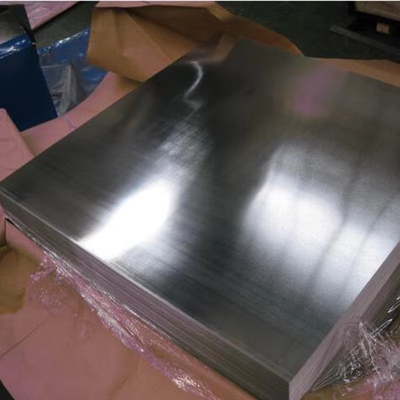

T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel/Electrolytic Tinplate /ETP for Cans

Pdoduct Description



Tinplate (commonly known as tinplate) is a surface coated with a thin layer of metal tin steel plate. The tin plate is the low carbon steel rolled into about 2 mm thick steel plate, after pickling, cold rolling, electrolytic cleaning annealing, smoothing, cutting processing, and then after cleaning, electroplating, soft melting, passivation treatment, oiling shear into the tin plate finished products, the tin plate used for high purity tin (Sn>99.8%). The tin layer can also be coated by hot dip plating method.

The tin layer obtained by this method is thicker, the amount of tin is large, and there is no need to purify the tin after plating. The tin plate is composed of five parts, from inside to outside is the steel substrate, tin alloy layer, tin layer, oxide film and oil film.

Product Name
Tin Plate/ Tin Sheet
Width
457～1038ｍｍ or as customer's requirements
Thickness
0.15～0.5ｍｍ
Length
480~1100mm or as customer's request
Surface
Bright/Stone/Silver finish with passivation treatment; DOS oil
Standards
AISI ASTM JIS SUS DIN GB
Certifications
ISO 9001
Packing
Industry standard packaging or according to client's requirement
Payment
T/T,L/C
Delivery time
Up to order quantity


Product Details

T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 0

Product Process

T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 1


Mechanical Properties





Temper Grade
Hardness(HR30Tm)
Yield Strength(MPa)
T-1
49±3
330
T-2
53±3
350
T-3
57±3
370
T-4
61±3
415
T-5
65±3
450
T-6
70±3
530
DR-7M
71±5
520
DR-8
73±5
550
DR-8M
73±5
580
DR-9
76±5
620
DR-9M
77±5
660
DR-10
80±5
690



Coating Weight





Former Coating Designation
Nominal Coating Weight (g/m2)
Minimum average Coating Weight (g/m2)
10#
1.1/1.1
0.9/0.9
20#
2.2/2.2
1.8/1.8
25#
2.8/2.8
2.5/2.5
50#
5.6/5.6
5.2/5.2
75#
8.4/8.4
7.8/7.8
100#
11.2/11.2
10.1/10.1
25#/10#
2.8/1.1
2.5/0.9
50#/10#
5.6/1.1
5.2/0.9
75#/25#
5.6/2.8
5.2/2.5
75#/50#
8.4/2.8
7.8/2.5
75#/50#
8.4/5.6
7.8/5.2
100#/25#
11.2/2.8
10.1/2.5
100#/50#
11.2/5.6
10.1/5.2
100#/75#
11.2/8.4
10.1/7.8
125#/50#
15.1/5.6
13.9/5.2



Package & Shipping
 T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 2
T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 3

Our Factory

T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 4
T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 5
Certification

T4 Dr9 Dr8 5.6/2.8 SPCC Tin Coating Tin Plated Steel / Electrolytic Tinplate / ETP For Cans 6
FAQ

1.What are the advantages of your company?
Prime quality and reasonable price, wide excellent experiences with after-sale service, professional packing teams which keep every packing safely, trial order can be done in one week, samples can be provided as your requirements.

2.What is your term of payment?
Payment<=1000USD,100% in advance, payment>=1000USD, 30%T/T in advance, balance based on BL copy or LC at sight. If you have another question, please contact us as below.

3.What about your price?
Our price is very competitive, because we are a factory. if you are interested in our products, please feel free to contact us.
