500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided

  • 500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
  • 500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
  • 500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided
Place of Origin Jiangsu, China
Brand Name TISCO
Certification SGS ISO ROHS
Model Number T1, T2, T3, T4, T5, Dr8, Dr9, Ba, Ca...
Minimum Order Quantity 100KGS
Price 500 - 1000 USD PER TON
Packaging Details Standard Seaworthy Package
Delivery Time 5 - 10Days after confirming order
Payment Terms L/C, T/T, Western Union
Supply Ability 800TONS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 0.5 - 100mm Or Customized Payment Term T/T L/C
Temper T1, T2, T3, T4, T5, Dr8, Dr9, Ba, Ca... After Sales Service Supporting After Sale Service
Warranty One Year Edge Slit Edge
Highlight

DR9 Corrugated Tin Plated Steel

,

50mm Width Corrugated Tin Plated Steel

,

22 Gauge Corrugated Tin Plated Steel
Leave a Message
Product Description

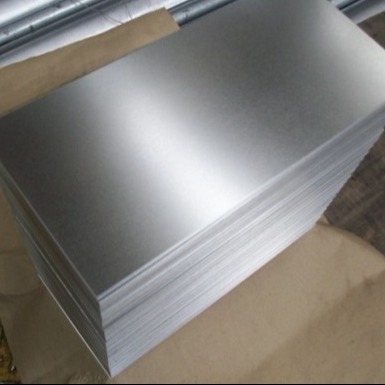

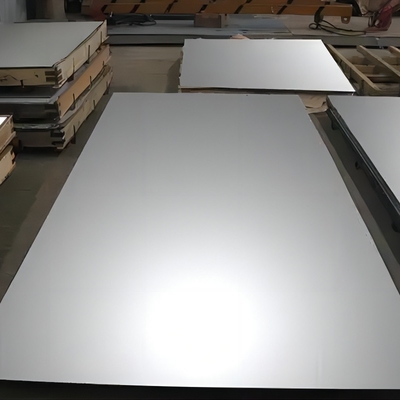

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided



Pdoduct Description



Tin plate, in which SN is the coating, and tin plate is also called tin plate. Tin plate is the common name of electroplated tin sheet, abbreviated as spte, which refers to cold rolled low carbon sheet or steel strip coated with commercial pure tin on both sides. Tin is mainly used to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, soldering and beautiful appearance of tin. It has the characteristics of corrosion resistance, non toxic, high strength and good ductility.



Material
SPCC,MR,SPCH
Thickness
0.5 to 100mm or as required
Width
20 to 2000 mm or as required
Length
600 to 6000 mm or as required
Tin coating
2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement
Temper
T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 BA & CA
Annealing
CA(Continuous annealing) and BA(Batch annealing)
Surface
Bright/Stone/Silver finish with passivation treatment; DOS oil
MOQ
25 tons or one container
Payment
T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP
Reference Standard
GB/T 2520 - 2008, JIS G3303 - 2008 ,DIN EN 10203 - 1991 and ASTM A623M - 2011
Applications
Widely used for metal packaging industry. Such as making cans for food, tea, oil, paints, chemicals, aerosol, gifts, printing



Structure



500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 0



Product Details



500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 1



Mechanical Properties



Temper Grade
Hardness(HR30Tm)
Yield Strength(MPa)
T-1
49±3
330
T-2
53±3
350
T-3
57±3
370
T-4
61±3
415
T-5
65±3
450
T-6
70±3
530
DR-7M
71±5
520
DR-8
73±5
550
DR-8M
73±5
580
DR-9
76±5
620
DR-9M
77±5
660
DR-10
80±5
690



Inspection



500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 2



Application



500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 3


Package & Shipping


 500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 4

500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 5



Production Process


500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 6


Certificates


 500mm Width Tin Plated Steel 22 Gauge Corrugated DR8 DR9 Wear Resistant Sample Provided 7


FAQ



How do you control quality ?
Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.


What are the advantages of your company ?
We have many professionals, technical personnel, more competitive prices and best after - dales service than other stainless steel companies.


How many coutries you already exported ?
Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
