Filter tube Stainless Steel Spiral Welded 304 Stainless Steel Perforated Pipes Porous Metal Mesh Screens Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Price Term | FOB CIF CFR EXW | Payment | L/T, T/T, Western Union |
|---|---|---|---|
| Product Name | Stainless Steel Pipes | Tolerance | ±1% |
| Type | Perforated Mesh | Application | Filters |
| Highlight | Filter Spiral Stainless Steel Perforated Pipes,Filters Stainless Steel Perforated Pipes,Welded Stainless Steel Perforated Pipes |
||
Product Description

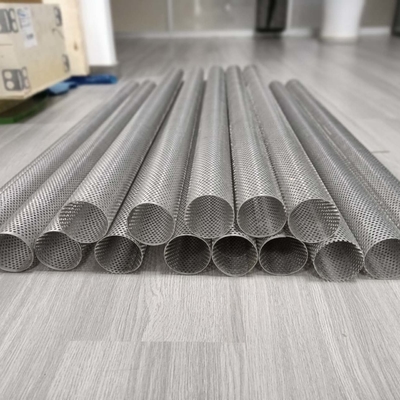

Filter tube Stainless Steel Spiral Welded 304 Stainless Steel Perforated Pipes Porous Metal Mesh Screens Tube
Perforated metal tubes are available in diameter up to 6 in. & lengths up to 30 in. in different metals including carbon steel, stainless steel & aluminum in different thicknesses. We manufacture standard & custom perforated metal tubes. Materials handled include stainless steel & carbon steel. Perforated tubing is available in OD up to 3 in., wall thickness from 0.024 in. to 0.118 in. & tube lengths up to 27.5.
Production Description
|
Material
|
stainless steel woevn mesh,perforated metal
|
|
Shape
|
Cylinder type
|
|
Size
|
1" x 7" ,1" x 9" , 2 x 10 inch , others can be customized
|
|
Sample
|
Free
|
|
Customzied
|
Acceptable
|
|
Layer
|
Single layer ,multi-layer
|
Surface Treatment
| Surface finish |
Characteristics & Application
|
|
NO.1
|
Hot-rolled surface, annealed and pickled, can be used as cold-rolling material, industrial tanks and chemical devices. |
| 2B | The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surface treatment to improve its chemical properties, N0.2B. could nearly satisfy comprehensive uses. |
| NO.4 | Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3. are used as bathtub building inner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-320 on the No.4. finish and has continuous streaks, mainly used as building ornaments, elevators, door of building, frontal plate etc. |
| BA | Cold-rolled, bright annealed and skin passed, the product has excellent brightness and good reflexivity like mirror, used for electrical appliances, kitchen apparatus, ornament materials etc. |
Chemical Compisition
Detailed Photo
Produce Process
1:Punching The Metal Sheet
A:Material :Stainless steel 304 / 316 ,316L ,201,430,aluminum,Carbon Steel;
B:According to different perforated metal tubes perforating the different steel strip in order to make the tubes.
C:Perforated metal tubes are available in diameter up to 6 in. & lengths up to 30 in
D:wall thickness from 0.024 in. to 0.118 in. & tube lengths up to 27.5
2:Welding Perforated Metal Tube
A:There are two normal Welding TYPES:one is Sprial welding perforated steel tubes and the other one is straight way to make the perforated metal tube.
B:Sprial welding perforated metal tube is more strength than the straight welded perforated tubing.
C:Straight perforated metal tube and sprial welding tubes are both could be as the filter elements.
3:Perforated tubes surface treatment
A:If the material is carbon steel Round Hole Perforated Tube usually we choose elctric galvanizing which could prevent the perforated carbon tube rust and make the tube long life for using.
B:If the material is Perforated Steel Tubing we often to electrolytic polishing which could make the stainless steel filter tubes more beautiful and cleaner.
C:Both the straight welding tube and sprical perforated tubing are also need to polish burrs which could not harm when we use them.
Application
Package & Delivery
Certificate
FAQ:
Q: What is the brand name of the stainless steel plate?
A: The brand name of the stainless steel plate is TISCO.
Q: What are the model numbers available?
A: The model numbers available are 201 304 304L 316 316L 321 410 420 430.
Q: Where is the stainless steel plate from?
A: The stainless steel plate is from China.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 Ton.
Q: What is the payment term?
A: The payment term is TT, L/C.
