Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g

  • Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g
Place of Origin CHINA
Brand Name ANSTEEL
Certification SGS ISO ROHS
Model Number DX51D SGCC
Minimum Order Quantity 1 Ton
Price According To The Quantity
Packaging Details Standard Seaworthy Package
Delivery Time 5-10 days after confirming order
Payment Terms T/T, L/C
Supply Ability 800 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Oiled Or Non-oiled Slightly Oiled Zinc Coating 30-275 G/㎡
Usage Building Construction Product Name Galvanized Steel Coils
Edge Slit Edge MOQ 2 TONS
High Light

0.6mm Galvanized Steel Coils

,

275g Galvanized Steel Coils

,

Slightly Oiled Galvanized Steel Coils
Leave a Message
Product Description



Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g





Product discription



Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer.Galvanized steel coil and sheet products are now being used for a wide range of electric appliances, automobiles and other industrial machinery as well as for civil engineering and architectural purposes.Galvanized steel products are made by cleansing and heat-treating rolled coils before dipping them into a bath of molten zinc. Through this process, the coils are plated with zinc only (GI), zinc and iron (GA) or zinc, aluminum and magnesium (PosMAC).



Technical Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement
Type
Coil/Sheet/Plate/Strip
Thickness
0.12-6.00mm,or customer's requirement
Width
600mm-1500mm, according to customer's requirement
Type of Coating
Hot Dipped Galvanized Steel(HDGI)
Zinc Coating
30-275g/m2
Surface Treatment
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality
Approved by SGS,ISO
ID
508mm/610mm
Coil Weight
3-20 metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export market
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc





Surface treatment
Features
Chemical passivating treatment
minimize the chance of white rust forming during the transit and storage
maintain the bright shiny appearance for a longer time
Oils
minimize the tendency for storage and transit stain
passivating + oils
provide the protection from the storage and transit stain by special chemicals called corrosion inhibitors





Product Advantages

01.Anticorrosive:13 years in heavy industrial areas,50 years in the ocean,104 years in the suburbs and 30 years in cities.
02.Cheap:The cost of hot-dip galvanizing is lower than that of other coatings.
03.Reliable:The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more durable.
04.Strong toughness:The galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
05.Comprehensive protection:Every part of the plated piece can be galvanized,and is fully protected even in depressions,sharp corners,and hidden places.
06.Save time and energy:Galvanizing process is faster than other coating methods.

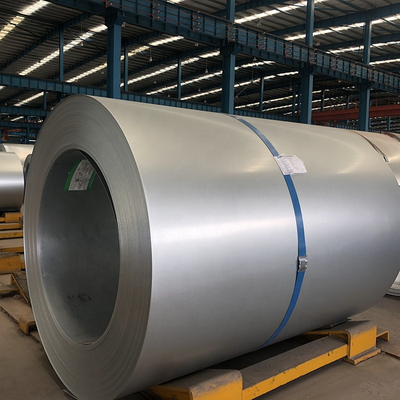

Detail Photos

Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g 0


Application


Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g 1


Certification
Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g 2
Packing & Shipping

Z275 Hot Dipped Galvanised Stainless Steel Strip Coil 1500mm SPCD SPCE 3

Gl Coil Sq Cr22 (230) Sq Cr22 (255) Minimized Spangle Coating Gi Galvanized Steel Coils 0.6mm 30-275g 4


FAQ




Q1:  ARE YOU FACTORY OR TRADER?
A1:  Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2012. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2:  WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2:  Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3:  HOW TO GET A SAMPLE?
A3:  FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4:  HOW TO VISIT YOUR FACTORY?
A4:  Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
