Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic

  • Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic
  • Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic
Place of Origin CHINA
Brand Name TISCO
Certification ISO,CE,ROHS
Model Number 316 316L
Minimum Order Quantity 1 Ton
Price According To The Quantity
Packaging Details Standard Seaworthy Package
Delivery Time 7-14Days
Payment Terms T/T
Supply Ability 50000 Tons Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sample Provided Freely Product Name 316 Stainless Steel Sheet
Edge Mill Edge Slit Edge Technical Treatment Cold Rolled/Hot Rolled
Length 1000-6000mm Width 1000-2000mm
High Light

mill edge stainless steel diamond sheet

,

316 stainless steel diamond sheet

,

10mm diamond pattern stainless steel sheet
Leave a Message
Product Description



Mill Edge Diamond Plate 316L 316 Stainless Steel Sheet 10mm Hot Rolled No.1 Weak Magnetic



316 Stainless Steel Sheet Description



How thick is a sheet of stainless steel?

It is important to know that the gauge thicknesses also vary depending on the type of sheet metal being referenced. Take for instance 12-gauge thickness across the material types listed below; stainless steel is 0.105″ thick, aluminum is 0.080″, copper is 0.108″, and brass is 0.081″.



Material
200 300 400 Series stainless steel
Grade
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
Standard
AISI ASTM JIS DIN EN BS
Tech
cold rolled / hot rolled
Thickness
Hot rolled: 3mm-16mm 16-150mm
Normal: 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0
As per customer's request: 16-150mm
Cold rolled: 0.3-6mm
Normal:0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0
As per customer's request: 4.0/5.0/6.0
Width&Length
1000mm-6000mm, or as per customer's request
Hot rolled: 1250*3000mm (4.1*10ft) 1500*3000mm (5*10ft)
1250*6000mm (4.1*19.6ft) 1500*6000mm (5*19.6ft)
1800*6000mm (5.9*19.6ft) 2000*6000mm(6.5*19.6ft)
Cold rolled: 1000*2000mm (3.2*6.5ft) 1219*2438mm (4*8ft)
1500*3000mm (5*10ft)
1800 available 2000 available
Place of Origin
Jiangsu China
Processing Service
Bending, Welding, Recoiling, Punching, Cutting
Tolerance
±1%
Surface Treatment
N0.1,2B,BA,6K, 8K, 12k, N0.4, HL, Mirrored,checkered etc
Payment
T/T terms, 30% pre-payment, 70% balance see B/L copy
Delivery Time
5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request

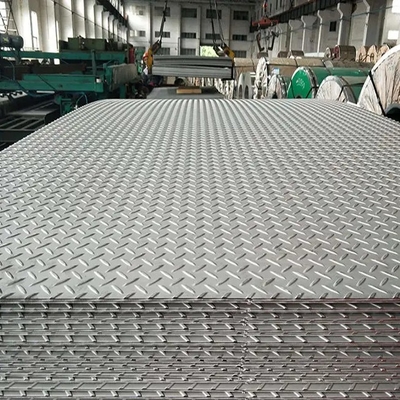

316 Stainless Steel Sheet Display



Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic 0



Chemical Composition



Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤ 0.03 3.5-5.5 16.0-18.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 16 .0-1 8.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.013 17.0-1 9.0 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤ 0.03 ≤0.60 16.0-18.0 -



Surface Treatment



Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic 1

About Us

Our company is a comprehensive processing group of stainless steel, aluminum, copper series and more than 800 specifications. Our group has been engaged in the domestic and global market for more than ten years with rich steel experience, can offer professional advice for customers in applications with different materials.
The existing inventory is more than 3000 tons for: stainless steel, aluminum, copper series etc. Our products meet customer satisfaction and end user trusts with excellent quality, efficient service, and competitive price.
In addition, we can customize products according to customer’s requirement. In accordance with GB standards, ASTM standards, JIS standard, EN and other standards. We also welcome OEM and ODM orders.
Whether choosing the current stock products from our catalog or seeking engineering help for your application, you can discuss your purchasing needs with our customer service center. We are here always and welcome you at any time.

Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic 2


Certification

Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic 3



Packing & Shipping

Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic 4

Mill Edge 316l 316 Stainless Steel Sheet Diamond Hot Rolled No.1 Weak Magnetic 5

FAQ


Q1:  ARE YOU FACTORY OR TRADER?
A1:  Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2012. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2:  WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2:  Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3:  HOW TO GET A SAMPLE?
A3:  FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4:  HOW TO VISIT YOUR FACTORY?
A4:  Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
