Polished Square Stainless Steel Pipes Mirror AISI 201 316L 430 20 X 20 40 X 40 Tube
Product Details
| Inside Diameter:: | 5-210mm | Wall Thickness: | 0.5~ 20mm |
|---|---|---|---|
| Length: | 6000 Or Customed | Application: | Bicycle,bike, Aviation, Marine, Petroleum, Medical, Racing And Other Equipment |
| MOQ: | 1 Ton | Product Name: | Stainless Steel Pipes |
| Highlight |
Polished Square Stainless Steel Pipes Mirror,AISI 201 Square Stainless Steel Pipes,20x20 Square Stainless Steel Pipes |
||
Product Description
AISI 201 304 316 316L 430 Mirror Polished Stainless Steel Pipes square 20x20 40x40 Tube
Stainless Steel Square Pipe is made up of various stainless steel grades. The square pipes are useful in structural applications as the geometric shape provides extra strength to the pipe. Navstar Steel is a leading manufacturer and supplier of the Stainless Steel Square Pipe products in various scales and dimensions.
Stainless Steel Pipes Descripton
|
Product name
|
Seamless Stainless Steel Pipe /Tube
|
|
|
Steel grade
|
200 series,300 series,400 series
|
|
|
Standard
|
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296
|
|
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202
|
|
|
Surface
|
Polishing,annealing,pickling,bright
|
|
|
Type
|
hot rolled and cold rolled
|
|
|
Size
|
Wall thickness
|
1mm-150mm(SCH10-XXS)
|
|
Outer diameter
|
6mm-2500mm (3/8"-100")
|
|
|
Delivery time
|
Prompt delivery or as the order quantity.
|
|
|
Package
|
1.By bundles, each bundle weight under 3 tons, for small outer diameter seamless steel pipe, each bundle with 4-8 steel strips；
2.After making by bundle, covered with Polyethylene waterproof cloth; 3.Customized is accepted. |
|
|
Container size
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
|

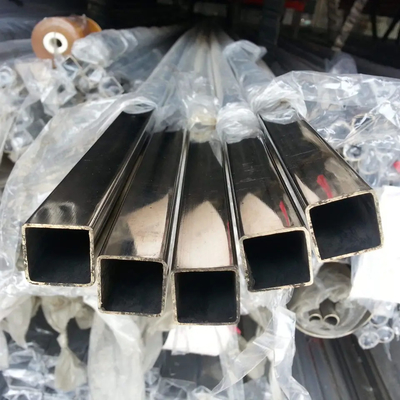

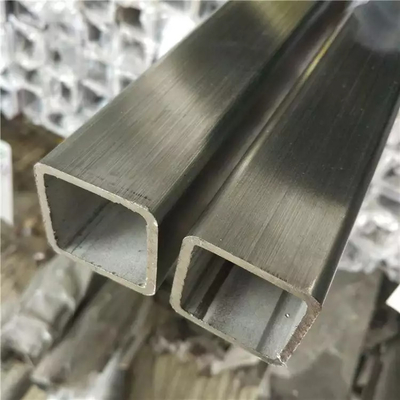

Stainless Steel Pipes Show
Chemical Composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16 .0-1 8.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-1 9.0 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
Packaging & Shipping
Certification
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
