Astm B348 Gr 5 Gr7 Gr9 Titanium Alloy Bars Diameter 2-200mm

Place of Origin CHINA
Brand Name WUXI HENGCHENGTAI
Certification ISO,CE,RoHS
Model Number GR5 GR7 GR9
Minimum Order Quantity 1 Ton
Price According To The Quantity
Packaging Details Standard Seaworthy Package
Delivery Time 7-10days
Payment Terms 30%L/C + 70%T/T
Supply Ability 50000 Tons Per Year
Product Details
Melting Point 1668℃ Alloy Or NOT α Alloy
Diameter 2-200 Mm Application Industrial And Medical
Trade Terms FOB, CIR, CRF, EXW Processing Service Bending, Welding, Decoiling, Cutting, Punching
High Light

diameter 2mm titanium alloy bars

,

astm b348 gr7 titanium alloy bars

,

astm b348 gr 5 titanium bars

Leave a Message
Product Description

ASTMB348 GR5 GR7 GR9 α Titanium Alloy Titanium Bars With Diameter 2-200mm



It is a single-phase alloy composed of α phase solid solution, both at general temperature and at higher practical application temperature, is α phase, stable structure, wear resistance is higher than pure titanium, oxidation resistance. At 500℃ ~ 600℃, its strength and creep resistance are still maintained, but it cannot be strengthened by heat treatment, and its strength at room temperature is not high.



Product name ASTMB348 GR5 GR7 GR9 α Titanium Alloy Titanium Bars
Standard ASTM B348/ASME SB348, ASTMF67, ASTM F136
Material Pure titanium / Titanium alloy
Grade Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333; BT1-00 BT1-0 BT1-2 BT4-0 etc
Size range Dia 2-200m*LMax6000mm
Technique Forging, Machining
Surface Acid surface, polishing or sand blasted
Shape Round, flat, square, hexagonal
Application Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.


Chemical Composition



  N C H Fe O Al V Pa Mo Ni Ti
Gr 1 0.03 0.08 0.015 0.2 0.18 / / / / / bal
Gr 2 0.03 0.08 0.015 0.3 0.25 / / / / / bal
Gr 3 0.05 0.08 0.015 0.3 0.35 / / / / / bal
Gr 4 0.05 0.08 0.015 0.5 0.4 / / / / /
Gr 5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal
Gr 7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal
Gr 9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal



Mechanical Properties



Grade Tensil strength (min) Yeild strength (min) Elongation (%)
KSi MPa KSi MPa
1 35 240 20 138 24
2 50 345 40 275 20
3 65 450 55 380 18
4 80 550 70 483 15
5 130 895 120 828 10
7 50 345 40 275 20
9 90 620 70 438 15
12 70 438 50 345 10



Detail Photos

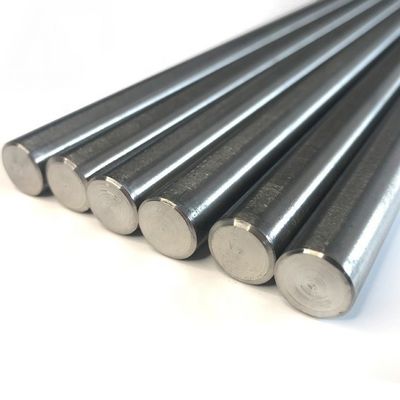

Astm B348 Gr 5 Gr7 Gr9 Titanium Alloy Bars Diameter 2-200mm 0


Certification
Astm B348 Gr 5 Gr7 Gr9 Titanium Alloy Bars Diameter 2-200mm 1
Packing & Shipping


Astm B348 Gr 5 Gr7 Gr9 Titanium Alloy Bars Diameter 2-200mm 2
