ASTM A554 Stainless Square Pipe 316 304 430 201 310s 904l Hairline
Product Details
| Surface Finish: | 2B,BA,Hairline | Shape: | Square Hollow Section |
|---|---|---|---|
| Technique: | Cold Drawing | Welding Line Type: | Seamless |
| Alloy Or Not: | Non-Alloy | Processing Service: | Bending, Welding, Decoiling, Cutting, Punching |
| Highlight |
astm a554 stainless square pipe,310s stainless square pipe,hairline ss 304 square tube |
||
Product Description

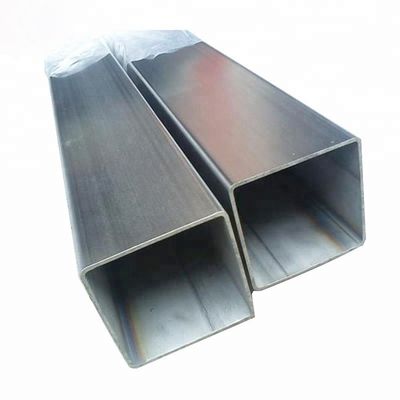

Square Stainless Steel Pipe 316 304 430 201 310s 904L Hairline Stainless Steel Tube
Stainless steel square tube is a hollow strip of steel, because the cross section is square so called square tube. A large number of used for conveying fluid pipelines, such as oil, natural gas, water, gas, steam, etc., in addition, in bending, torsion strength at the same time, lighter weight, so it is also widely used in manufacturing machinery parts and engineering structures.
| Square Stainless Steel Pipe 316 304 430 201 310s 904L Hairline Stainless Steel Tube | |
| Product Standards | Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249) |
| Heat exchanger tube: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2 | |
| Industrial fluid pipe: ASTM A312, EN 10217-7, GB / T 12771-2008, HG 20537.3 | |
| Drinking water tube: GB / T 19228 | |
| Ornamental tube: ASTM A554, EN 10296-2 | |
| Production Size | Outer Diameter: 9.5~2000mm |
| Thickness: 0.5~20mm | |
| Length: Up to 18.3 meter per piece | |
| Shape of tube | Square,Quadrangle |
| Usage of tube | Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on; |
| Heat exchanger tube: condenser, boiler, super heater, evaporator and so on; | |
| Ornamental tube: handrail, railings, balustrade, fence and so on. | |
Chemical Composition
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
Detail Photos
Certification
Packing & Shipping
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
