ASTM B348 Titanium Alloy Bars GR9 GR10 A276 Type 431
Product Details
| Product Name: | Titanium Bar | Material: | Gr1, Gr2, Gr3,gr4, Gr5,gr7, Gr9, Gr10 |
|---|---|---|---|
| Certificate: | ISO9001:2008 | Processing Service: | Bending Cutting Welding Punching |
| Trading Term: | CIF CFR FOB EXW | Ti: | 99.9% |
| Shape: | Hexagonal | Surface Treatment: | Polished |
| Shipping: | By Sea, Air | Payment Term:: | TT LC |
| Highlight |
ASTM B348 Titanium Alloy Bars,Titanium Alloy Bars GGR9 GR10,astm a276 type 431 |
||
Product Description

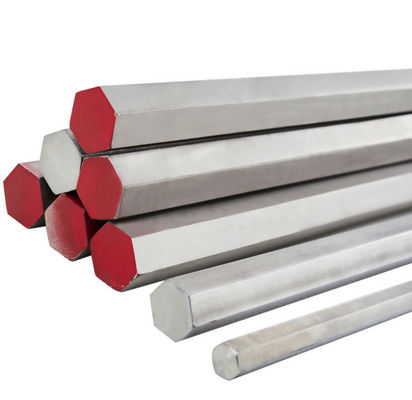

ASTM B348 PureTitanium Gr1 Gr2 Titanium Alloy Gr5 (Ti-6Al-4V) Hexagonal Bar
100% titanium sponge to produce titanium ingot and 3 times melting to ensure the uniformity of chemical composition,quanlity received customer approval.
1) Nondestructive Test
2) UT Testing Detector
3) Tensile Tester
4) Digital Ultrasonic Detector
5) Infrared Tester
6) HV Hardness Tester
| Material | GR1, GR2 &Ti alloy GR5 |
|
Specification |
Length ≤6000mm |
|
State |
R/Y/M |
| Density | ≥4.51g/cm3 |
| Grade | Gr1,Gr2,Gr3,Gr4,Gr5,Gr6,Gr7,Gr9,Gr11,Gr12,Gr23 |
| Standard | ASTM B348,ASME SB348,AMS 4928,ASTM F67,ASTM F136 |
|
Application |
Titanium round rod , square rod ,hexagonal rod also provided with grade 1 to grade 23 . Typically medical grade rods mainly used for orthopedic applications, such as body implantable fasteners ,dental appliances and prosthesis . Industry grade mainly used as air frame and aircraft engine parts,marine chemical parts, condenser tubing ,heat exchangers,rings ,flywheels ,clutch hats ,machine parts and so on . |
Product Description
Chemical Composition
| Grade | chemical composition, weight percent (%) | ||||||||||
| C | H | O | N | Fe | Al | V | Pd | Ni | Mo | Ti | |
| (≤) | (≤) | (≤) | (≤) | (≤) | - | - | - | - | - | bal | |
| GR1 | 0.08 | 0.015 | 0.18 | 0.03 | 0.2 | - | - | - | - | - | bal |
| GR2 | 0.08 | 0.015 | 0.25 | 0.03 | 0.3 | - | - | - | - | - | bal |
| GR4 | 0.08 | 0.015 | 0.25 | 0.03 | 0.3 | - | - | - | - | - | bal |
| GR5 | 0.08 | 0.015 | 0.2 | 0.05 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | bal |
| GR7 | 0.08 | 0.015 | 0.25 | 0.03 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | bal |
| GR9 | 0.08 | 0.015 | 0.15 | 0.03 | 0.25 | 2.5~3.5 | 2.5~3.5 | - | - | - | bal |
| GR11 | 0.08 | 0.15 | 0.18 | 0.03 | 0.2 | - | - | 0.12~0.25 | - | - | bal |
| GR12 | 0.08 | 0.15 | 0.25 | 0.03 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | bal |
| GR23 | 0.08 | 0.125 | 0.13 | 0.03 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | bal |
Physical Properties
| Grade | Physical properties | |||||
| Tensile strength | Yield strength | Elongation in 4D | Reduction of Area | |||
| Min | Min (0.2%, offset) | Min (%) | Min (%) | |||
| ksi | MPa | ksi | MPa | |||
| Gr1 | 35 | 240 | 20 | 138 | 24 | 30 |
| Gr2 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr4 | 80 | 550 | 70 | 483 | 15 | 25 |
| Gr5 | 130 | 895 | 120 | 828 | 10 | 25 |
| Gr7 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr9 | 90 | 620 | 70 | 483 | 15 | 25 |
| Gr12 | 70 | 483 | 50 | 345 | 18 | 25 |
| Gr23 | 120 | 828 | 110 | 759 | 10 | 15 |
Packaging & Shipping
Certification
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
