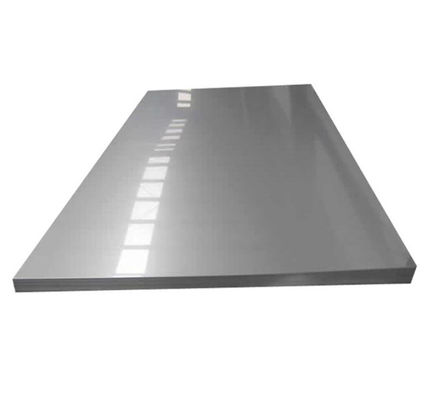

Gr1 Gr2 Gr4 Titanium Plate Sheet
Product Details
| Product Name: | Titanium Metal Ti Price Gr1 Gr2 Gr4 Gr5 Titanium Plate Sheet | Tolerance: | 0.1% |
|---|---|---|---|
| Processing Service: | Bending Cutting Welding Punching | Thicness: | 0.4-60mm |
| Color: | Silver | Length: | Cusomized |
| Highlight |
Gr1 Gr2 Titanium Plate Sheet,Gr4 Titanium Plate Sheet,ASTM B265 welded titanium tube |
||
Product Description
Titanium Metal Ti Price Gr1 Gr2 Gr4 Gr5 Titanium Plate Sheet
Titanium has a metallic luster and is malleable. The density is 4.5 g/cm3. Melting point 1660±10°C. Boiling point 3287 °C. Valence + 2, +3 and +4. The ionization energy is 6.82 eV. The main features of titanium are low density, high mechanical strength, and easy processing. The plasticity of titanium depends mainly on purity. The purer the titanium, the greater the plasticity. It has good corrosion resistance and is not affected by the atmosphere and seawater. Under normal temperature, it will not be corroded by 7% or less of hydrochloric acid, 5% or less of sulfuric acid, nitric acid, aqua regia or dilute alkali solution; only hydrofluoric acid, concentrated hydrochloric acid, concentrated sulfuric acid, etc. can act on it
Product Description
|
Description
|
ASTM B265 Grade 2 Grade 5 Titanium plate / Titanium sheet
|
|
Material
|
Grade 1: Pure Titanium, relatively low strength and high ductility.
Grade 2:The pure titanium most used. The best combination of strength,ductility and weldability. Grade 3:High strength Titanium, used for Matrix-plates in shell and tube heat exchangers. Grade 5:The most manufactured titanium alloy. Exceedingly high strength. high heat resistance. Grade 7: Superior corrosion resistance in reducing and oxidizing environments. Grade 9: Very high strength and corrosion resistance. Grade 12: Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11. Grade 23: Titanium-6Aluminum- 4Vanadium ELI Alloy for surgical implant application. |
|
Standard
|
ASTM B265,ASME SB265,DIN17851,TiA16Zr5Mo1.5,JIS4100-2007,GB3461-2007
|
|
Size
|
Cold rolled: Thick 0.02mm ~ 5mm * Wide 1500mm max * Long 2500mm max
Hot rolled: Thick 5mm ~ 100mm * Wide 3000mm max * Long 6000mm maxCustomized according to customer requirements |
|
Technique
|
Hot rolled and cold rolled or forging
|
|
Package
|
Plywood case and then tied by steel band. The packaging will keep the goods more secure when in long distance transportation.
|
|
Application
|
1.Based on High intensity,titanium products tensile strength can be up to 180Kg/mm².
2.Titanium and titanium alloy in aviation industry, is called "space metal"; In addition, in the shipbuilding industry, chemical industry, manufacturing machinery parts, telecommunications equipment, hard alloy, etc have increasingly extensive application 3.In addition, because of the titanium alloy with the human body has very good compatibility, so the titanium alloy can also be artificial bone.4,Seawater desalination industry 5. Chemical Industry, 6. Electroplating equipment 7. Precision instruments 8. Environmentalprotection equipment |
Product Detailes
Product Application
Packaging & Shipping
The products are properly packed in wooden boxes, crates, cartons, and cases. These packaging provides safety and cares against harm and rust during transit. At last products are appropriately marked with grade, lot no, size, dimension, trademark, and specifications of the product. Furthermore, we also do customize remarking on the product according to the customer’s mention requisites.
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
