904L Hot Rolled Stainless Steel Sheet HL PVD Coating Heat Resistance

Place of Origin CHINA
Brand Name WUXI HENGCHENGTAI
Certification ISO,CE,RoHS
Model Number 201 304 316 410 420 430 904
Minimum Order Quantity 1 Ton
Price According To The Quantity
Packaging Details Standard Seaworthy Package
Delivery Time 7-10days
Payment Terms 30%L/C + 70%T/T
Supply Ability 50000 Tons Per Year
Product Details
Width Range 4'*8'ft,4'*10'ft, 1000*2000mm,1500x3000mm Etc Surface Finished 2B, 2D, 4B, BA, HL, MIRROR, Brush, NO. 1-NO. 4, 8K
Processing Service Cutting,PVD/PVC Coating, Laser Cutting Film Trade Terms FOB, EXW,CIF,CFR
Tensile Strength ≥520Mpa Payment Terms 30% Deposit + 70% LC At Sight
High Light

PVD Coating Stainless Sheets

,

Hot Rolled 904L Stainless Steel Sheet

,

heat resistance HL Stainless Sheet

Leave a Message
Product Description

Hot Rolled Stainless Steel 304 Plate For Chemical Industry Equipment Industrial Tanks



Because of its high chromium-nickel-molybdenum content and the addition of copper, 904L can be passivated even in reductive environments such as sulfuric acid and formic acid. The high nickel content leads to a lower corrosion rate in the active state.



Material
UNS N08904 904L Hot Rolled Stainless Steel Sheet 5-10mm OEM
Material Origin TISCO, BAOSTEEL, JISCO, LISCO, DINGXIN
Grade Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
200series:201,202,202cu,204
400series:409,409L,410,420,430,431,439,440,441,444
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
Technology Hot Rolled
Length 100~12000 mm
Width 100~2000 mm
Thickness Cold Roll:0.1~3 mm
Hot Roll:3~100 mm
Surface BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
  Leveling: improve flatness, esp. for items with high flatness request.
  Skin-Pass: improve flatness, higher brightness
Other Choices Cutting:Laser cutting, help the customer to cut the required size
Protection 1. Inter paper available
2. PVC protecting film available
Price Item FOB,CIF,DDU,FCA,EXW ,.etc



Chemical Composition



Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -



Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

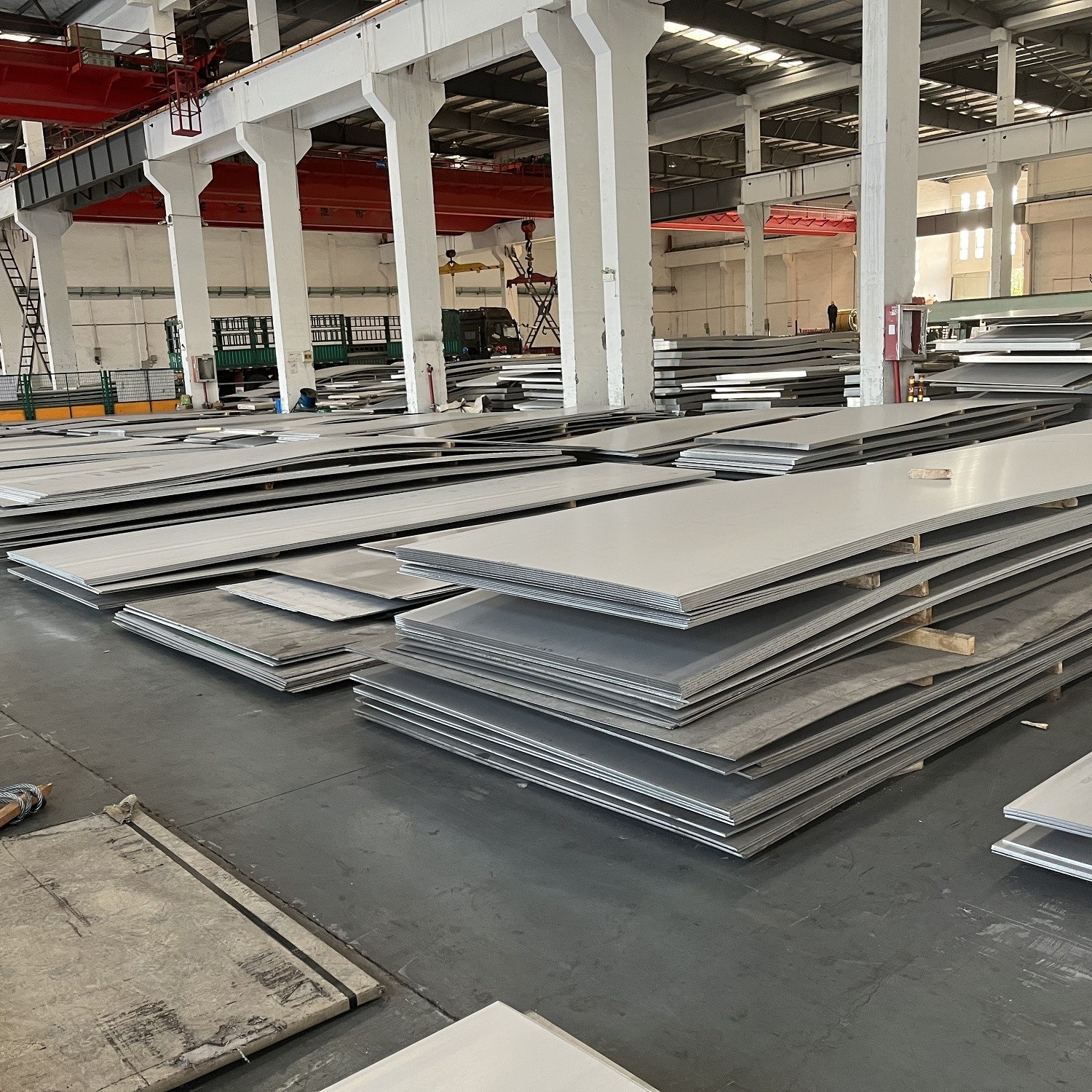

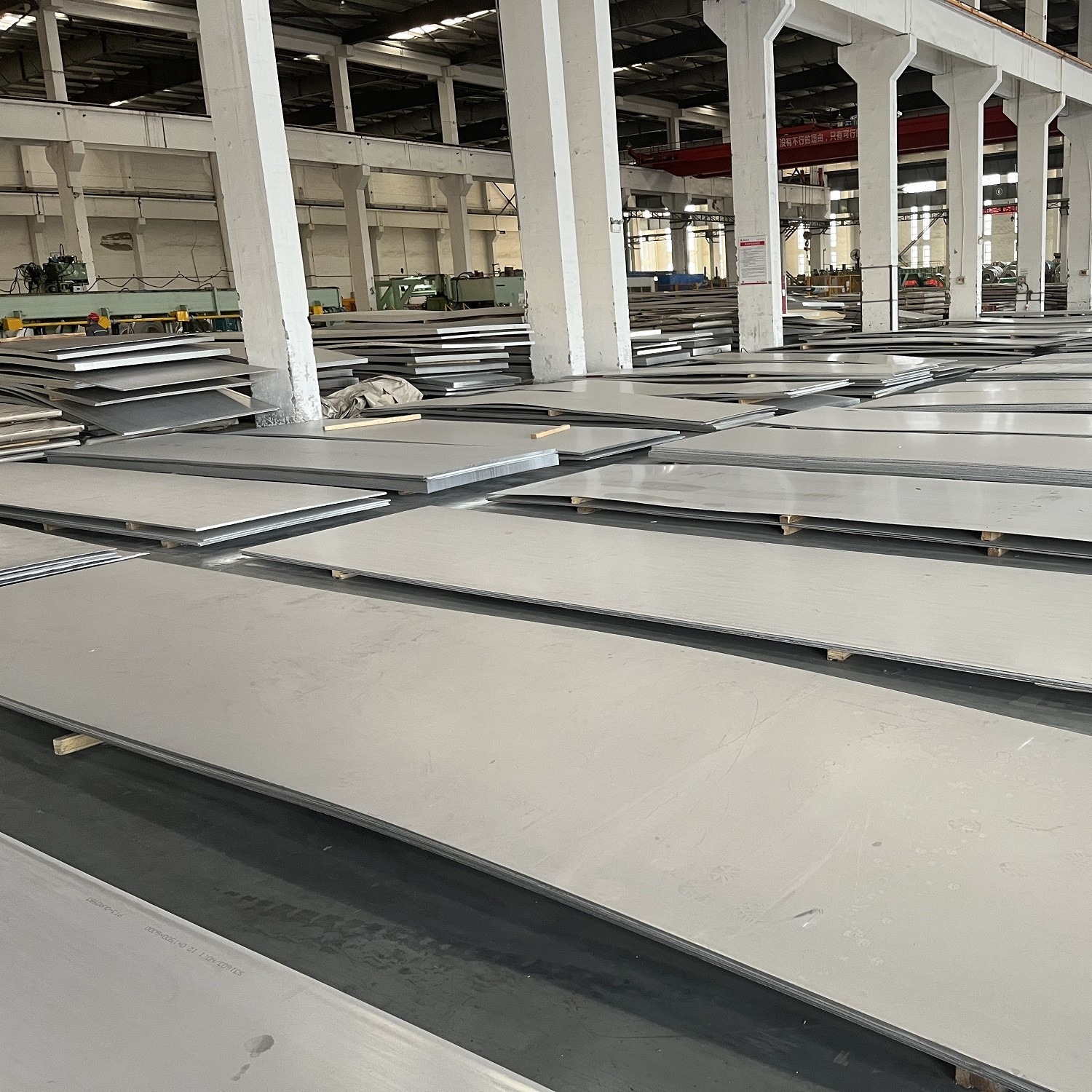

Detail Photos





904L Hot Rolled Stainless Steel Sheet HL PVD Coating Heat Resistance 0



Surface Refrence

904L Hot Rolled Stainless Steel Sheet HL PVD Coating Heat Resistance 1

Surface
Characteristic
Processing Technology
N0.1
Original
Pickled after hot rolling
2D
Blunt
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling
2B
Blurred
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + tempering rolling
N0.3
Matte
Polishing and tempering rolling with 100-120 mesh abrasive materials
N0.4
Matte
Polishing and tempering rolling with 150-180 mesh abrasive material
NO.240
Matte
Polishing and tempering rolling with 240 mesh abrasive materials
NO.320
Matte
Polishing and tempering rolling with 320 mesh abrasive materials
NO.400
Matte
Polishing and tempering rolling with 400 mesh abrasive materials
HL
Brushed
Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture
BA
Bright
The surface is annealed and shows high reflectivity
6K
Mirror
Rough grinding and polishing
8K
Mirror
Fine grinding and polishing



Certification

904L Hot Rolled Stainless Steel Sheet HL PVD Coating Heat Resistance 2

Packing & Shipping



904L Hot Rolled Stainless Steel Sheet HL PVD Coating Heat Resistance 3



Packing
PVC waterproof paper packed , strong sea-worthy wooden package and steel plate packing
Shipping port
Shanghai



Shipment
Length: ≤6m, loaded in 20GP Container
Length: ≤12m, loaded in 40GP Container
Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
Delivery time
Within 7-15 days, depending on the situation
