5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm

  • 5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm
  • 5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm
  • 5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm
Place of Origin CHINA
Brand Name CHINALCO
Certification BIS, SASO, SONCAP, SABS, SIRM, GS, ISO9001
Model Number 5083
Minimum Order Quantity 1 ton
Price Negotiable
Packaging Details Standard Waterproof Package
Payment Terms L/C, T/T
Supply Ability 50000 tons per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delivery Time 8-14 Days Typical Product Automobiles, Oxide Materials, Fuel Tank Materials,door P
Alloy Or Not Is Alloy Thickness 0.1-8mm
Hardness H12/22 H14/24 H16/26 H18 H19 Surface Smooth Clean
Leave a Message
Product Description



5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm



Product Description



5083 is highly resistant to attack by both seawater and industrial chemical environments. Alloy 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use in temperatures in excess of 65°C.





Aluminium Alloy
Thickness (mm)
Width (mm)
Temper
105,010,601,100
0.2-2.0
800-2000
H14,H16,H24,H26
300,330,043,105
0.2-2.0
800-2000
H14,H16,H24,H26
Standard Size
standard thickness:0.3-1.2mm
Surface
standard width:914mm/1000/1200/12120mm
Size can be produced as per clients requirement
Surface
mill finish, flat, smooth, stucco emboss(orange peel), corrugation
Back lamination
polykraft paper, polysurlyn, kraft paper, craft paper
Polykraft Thickness
about 0.1mm
Corrugation Type
6x32mm( wave height 6mm ,and wave distance 32mm)
Quality Standard
ASTM B209,EN573-1
MOQ per size
1 tons
Payment Terms
TT OR LC OR DP at sight
Delivery Time
Within 30 days after receipt the lc or deposit

Tension level, Flat, Free of defects like oil stain, Roll Marks, waves, dents, Scrath,etc A+++ quality
Material Quality
Application
heat insulation moisture barrier, oil field

Standard export worthy wooden pallets, and standard packing is about 2 .5tons/pallet or 100 feet one roll

Packaging
or 100 feet one roll and each roll packed in one carton box, one 20' container can be loaded about 280 rolls



Product Photos

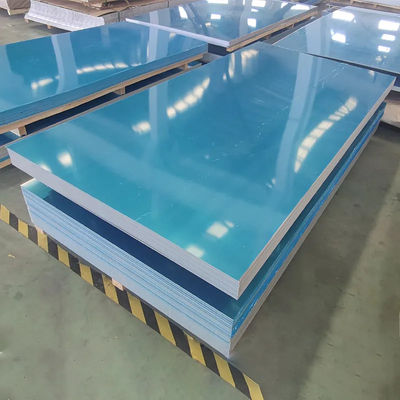

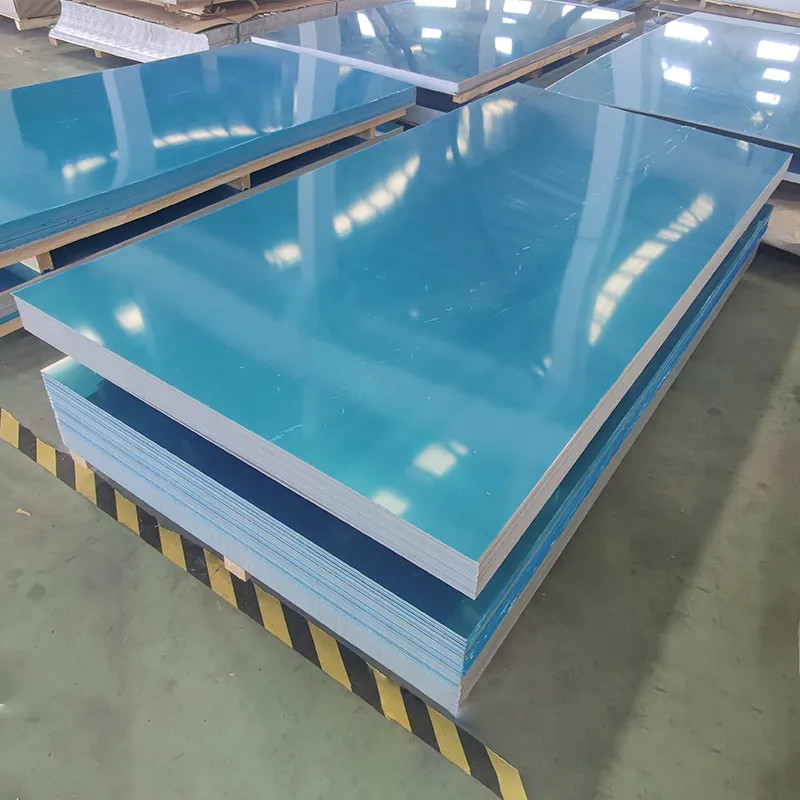

5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm 0

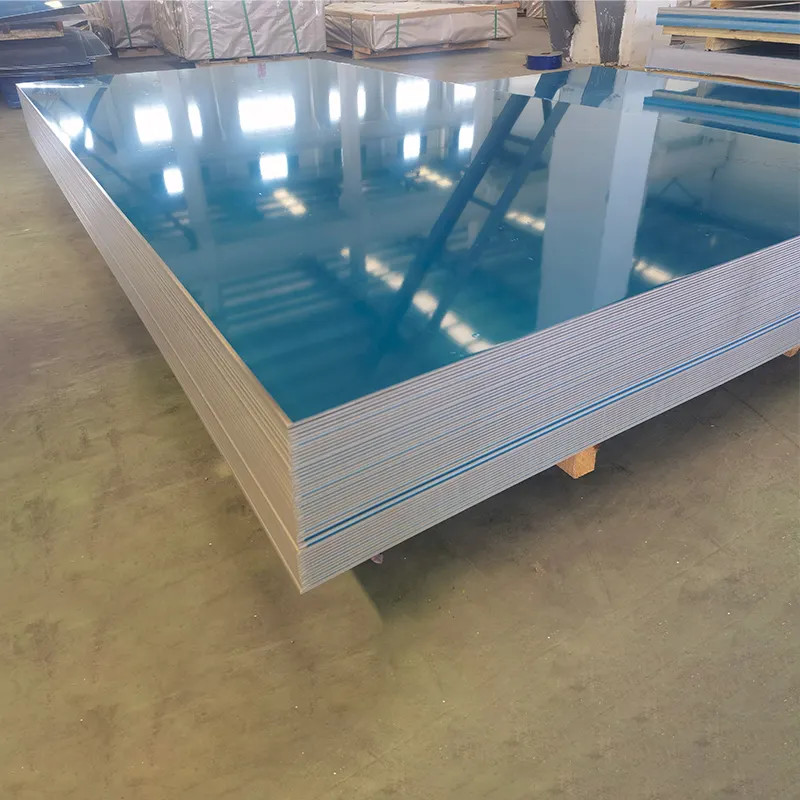

5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm 1



Aluminum Grade



1000 Series
Industrial Pure Aluminum(1050,1060 ,1070, 1100)
2000 Series
Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17)
3000 Series
Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105)
4000 Series
Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A)
5000 Series
Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182)
6000 Series
Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02)
7000 Series
Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05)





Mechanical Property



Mechanical Property
ALUMINUM
ALLOY		 Grade Normal
Temper		 Temper Tensile Strength
N/mm²		 Yield Strength
N/mm²		 Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)		 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)		 3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)		 5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)		 6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)		 7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150



Application



5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm 2

​Certification



5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm 3

Packing &Shipping



5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm 4

5083 Marine Sublimation Aluminum Laminate Alloy Aluminum Sheet Roll Plate Panel Thick 0.5mm 5



FAQ

Q: ARE YOU FACTORY OR TRADER?
A: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2012. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q: HOW TO GET A SAMPLE?
A: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q: HOW TO VISIT YOUR FACTORY?
A: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
